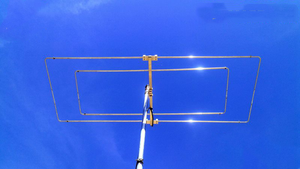

Compact 2 Band Beam for 4m/6m EAntenna 50/70MHz Moxon BeamA very compact antenna for the 4 and 6m band. With the design with Moxon elements as radiators we achieve several benefits like for example the very short boom length, an excellent front/back ratio of more than 30 dB and a large bandwidth. An other benefit is the 50 ‘© design, which let's u s avoid the use of a lossy balun as transforming element, the feed line is connected directly to the radiator. Only one feed line is required for both bands. The small weight of only 3 kg makes this antenna also suitable for vacations and DX-peditions. Packing size only 153 x 10 x 10cm.

SPECIFICATION

6m 4m Elements per Band: 2 2

Frequency Range: 50,0~52,0 70,0~70,5 MHz.

Gain: (dBi) 5,95 6,03 dBi

Gain: (dBi) 11,99 dB 11,8 dBi

F/B: 32,6 dB 35,8 dB SWR: 1,1:1~1,2:1 1,1:1~1,2:1

Impedance: 50 Ohm

Max. Power: 10 kW.

Boom Length: 0,86m / 34"

Turning Radius: 1,2m / 47"

Wind Survival: 220kmh / 135mph

Weight: 3 Kg / 6,6 Pounds
