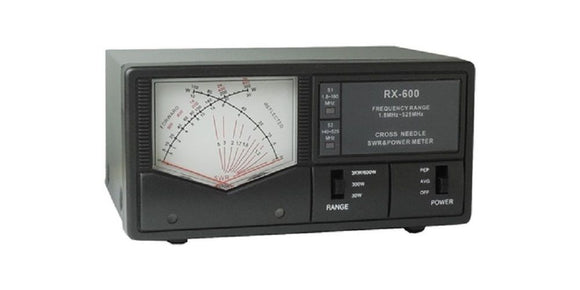

MAAS RX 600 Cross needle SWR/POWER meter with two separate inputs & outputs. Input 1 = 1.8 to 160 MHz / Input 2 = 140-525 MHz.

Specifications:

Frequency range 1.8 - 160 MHz / 140-525 MHz

Performance 0.5 W - 3 KW (switchable 30 W / 300 W / 3KW)

Minimum power for SWR measurement: 0.5 W

Measurement accuracy @ 30W Range: + / -5% @ 300W

Range: + / -5% @ 3KW Range: + / -7.5%

Equipment illuminated display (13.8 V DC required for backlighting)

Status LED for input 1 or 2 AVG / PEP

switching DC cable included

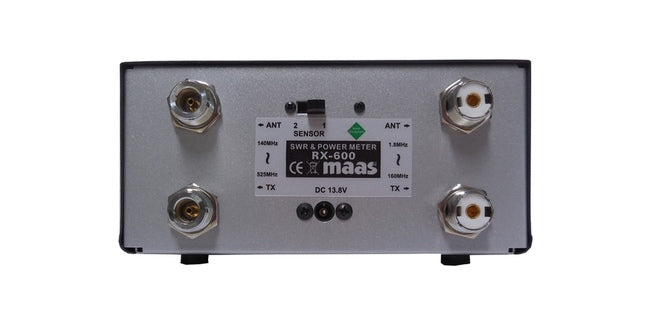

Connections N-female connectors (for 140-525 MHz)SO 239 connectors (for 1.8 - 160 MHz)

Insertion loss: 0.2 dB

Dimensions (W x H x D in mm) 150 x 65 x 100 (without protruding parts)

Weight approx 720g
