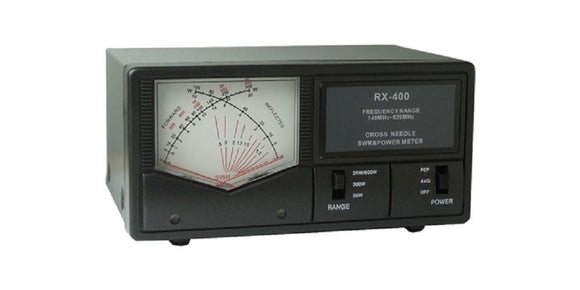

MAAS RX 400 Cross Needle SWR & PWR Meter 140-525 MHz

MAAS RX 400 Cross Needle SWR & PWR Meter 140-525 MHz

Tax included.

SWR and Power meter with cross needle movement.

Specifications

Frequency range 140-525 MHz

power 0.5W - 600W (switchable 30 W / 300 W / 600 W

)Minimum power for SWR measurement: 0.5 W

Measurement accuracy @ 30W

Range: +/- 5% @ 300W Range: +/- 5% @ 600W Range: +/- 7.5%

Equipment Backlit display instrument (13 V DC lighting)AVG /

PEP switchover

DC cables included

Connections N connectors Insertion loss: 0.2 dB

Dimensions (W x H x D mm) 150 x 65 x 100 (not including protrusions)

weight approx 630g
