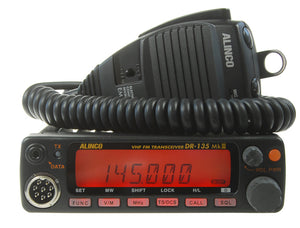

Alinco DR 135 e mk 111 3 VHF Ham radio

Alinco DR 135 e mk 111 3 VHF Ham radio

Tax included.

Specifications....TypeMobile Amateur VHF Transceiver Frequency range RX118-174 MHz (after modification) TX144-146 MHz Frequency stability- Tuning steps5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz ReceiverModulationsAM / FM / N-FM (DV optional) Sensitivity< -16.0 dBu (12 dB SINAD) SelectivityFM: 12 kHz or more (-6 dB), 28 kHz or less (-60 dB) N-FM: 6 kHz or more (-6 dB), 16 kHz or less (-60 dB) Receiver systemDouble-conversion superheterodyne IF-frequencies1st: 21.7 MHz 2nd: 450 KHz TransmitterModulationsFM / N-FM (DV optional) RF-outputHigh: 50 W, Medium: 20 W, Low: 5 W ConnectionsAntennaBNC Impedance50 ‘© ElectricalPower requirements13.8V DC +/- 15% Current drain RX400 mA (squelched) TXMax 11 A PhysicalDimensions (wí„hí„d)142 í„ 40 í„ 174 mm (5.59 í„ 1.57 í„ 6.85 in)
