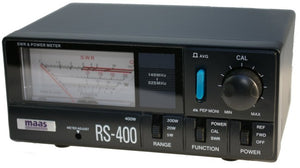

MAAS RS-400 SWR & PWR meter 140-525 MHz up to 400 W

£74.98

Tax included.

MAAS RS-400 SWR & PWR meter 140-525 MHz up to 400 W

Frequency range 140-525 MHz

Performance Up to 400 W (switchable 5 W / 20W / 200/400 W)

Minimum power for SWR measurement: 0.5 W

Accuracy@ 5W Range: + / -5%@ 20W Range: + / -7.5%@ 200W range: + / -10%@ 400W Range: + / -12.5%

Equipment Illuminated instrument cluster (6.7 x 3.5 cm) can be adjusted (adjustment 0)AVG button

Power supply for backlight: 13.8 V DCDC cable included

Connections N-female Insertion

loss: 0.2 dB

Dimensions (WxHxD in mm)152 x 68 x 102 (without protruding parts)

MAAS RS-400 SWR & PWR meter 140-525 MHz up to 400 W

MAAS RS-400 SWR & PWR meter 140-525 MHz up to 400 W

Frequency range 140-525 MHz

Performance Up to 400 W (switchable 5 W / 20W / 200/400 W)

Minimum power for SWR measurement: 0.5 W

Accuracy@ 5W Range: + / -5%@ 20W Range: + / -7.5%@ 200W range: + / -10%@ 400W Range: + / -12.5%

Equipment Illuminated instrument cluster (6.7 x 3.5 cm) can be adjusted (adjustment 0)AVG button

Power supply for backlight: 13.8 V DCDC cable included

Connections N-female Insertion

loss: 0.2 dB

Dimensions (WxHxD in mm)152 x 68 x 102 (without protruding parts)

Weight 660g
