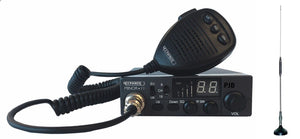

MOONRAKER MINOR II PLUS CB 12 24 V AM FM UK EU & Moonraker MINI MAG Antenna

MOONRAKER MINOR II PLUS CB 12 24 V AM FM UK EU & Moonraker MINI MAG Antenna

Tax included.

MOONRAKER MINOR II PLUS CB 12 24 V AM FM UK EU & Moonraker MINI MAG Antenna

Moonraker MINI MAG

  • Type: Centre loaded complete mobile CB antenna kit

  • Frequency: 27-28MHz

  • Length: 62cm

  • VSWR: 1.5:1 or better

  • Power: 100 Watts

  • Includes: 90mm magnetic mount

  • 4 metres coax & PL259 plug fitted

Compact and neat CB antenna kit ready to plug & play



MOONRAKER MINOR II PLUS

  • Frequency Range : 26.965-27.405 & 27.60125-27.99125 MHz

  • Channels 80 FM * 2

  • Frequency control P.L.L.

  • Operating temperature -10°/+55°C

  • DC input voltage 13.8Vdc ±15%

  • Size 38mm (h) x 115mm (W) x 150mm (D)

    • Weight 0.8 kg

    TRANSMITTER

    • System CPU controlled P.L.L. synthesizer

    • Maximum RF power 4W at 13.8Vdc

    • 1.8 KHz ±0.2 KHz (FM)

    • ANT impedance 50 ohm unbalanced

    • Current drain 1000mA (at no modulation)

    RECEIVER

    • System CPU controlled Double conversion super

    • IF 1° 10.7 MHz / 2° 450 KHz

    • Sensitivity -120dBm for 12dB SINAD

    • (FM)

    • -107dBm for 12dB SINAD (AM)

    • Audio output @10% THD 2.5W at 8 ohm

    • Audio distortion <8% at 1 KHz

    • Image rejection 65dB

    • Adjacent channel 85dB

    • Signal rise ratio 45dB

    • Current drain 220mA (stand-by)
