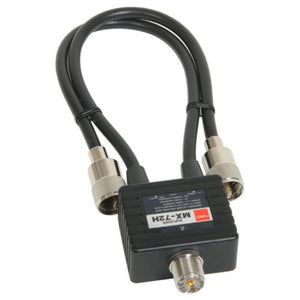

Diamond MX 72 H Duplexer VHF 140-150 MHz & UHF 400-460 MHz

Diamond MX 72 H Duplexer VHF 140-150 MHz & UHF 400-460 MHz

Tax included.

Diamond MX 72 H Duplexer VHF 140-150 MHz & UHF 400-460 MHz

Specifications: Port: LPF/BPF/HPF

Frequency (MHz): 1.6-30/140-150/400-460CW W: 400/150/100PEP W: 1KW/400/250

Loss dB: .1/.1/.1Isol dB: 60/60/60

Mix Connector: UHF Female (SO-239)

Port connector: PL-259 & 12" coaxial cable

PL-259 & 12" coaxial cable
