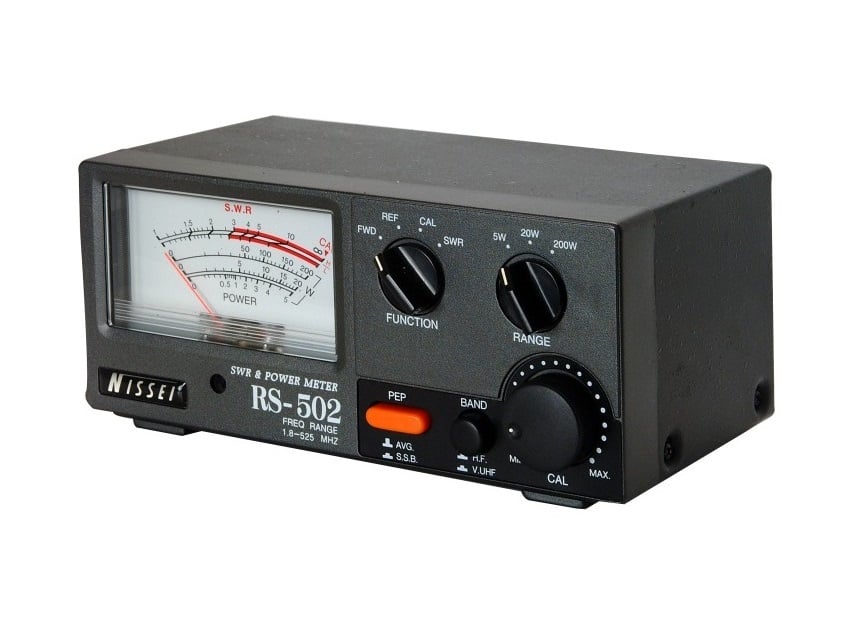

NISSEI RS 502 Power SWR Meter 1.8Mhz-525Mhz Radio HF VHF UHF

NISSEI RS 502 Power SWR Meter 1.8Mhz-525Mhz Radio HF VHF UHF

SWR/Watt meter is a highly accurate RF meter for measuring Forward Power, Reversed Power and VSWR.

Main Features: Large meter display for ease of reading. Forward RF power readings. Switchable to indicate either average power or peak Envelope Power(REP) for SSB and AM transmitters. Reflected RF Power readings. VSWR ratios. Illuminated meter. Convenient control layout for easy operation.

Specifications: Frequency Range:1.8-525MHz,

Power Range: 1-200W, Power Scale: 5/20/200W, Maximum Power: 200W,

Accuracy 5W Range: (AVG)+/-10%, (REP)+/-15%, Accuracy 20-3KW Range : (AVG)+/-5% (REP)+/-10% Minimum Power for SWR: 3W

Connectors: SO-239 (M Type)

Weight(Net):950g

Insertion Loss: Less than 0.1db

Testing Function, FWD/REF POWER, REP, SWR

Input/Output Impedance: 50 OHM

Dimensions(W/H/D): 90mm x 85mm x135mm.

Package Content:

1×NISSEI RS-502 SWR & Watt Meter

1×Operation Manual

1×13.8V DC Wire.
