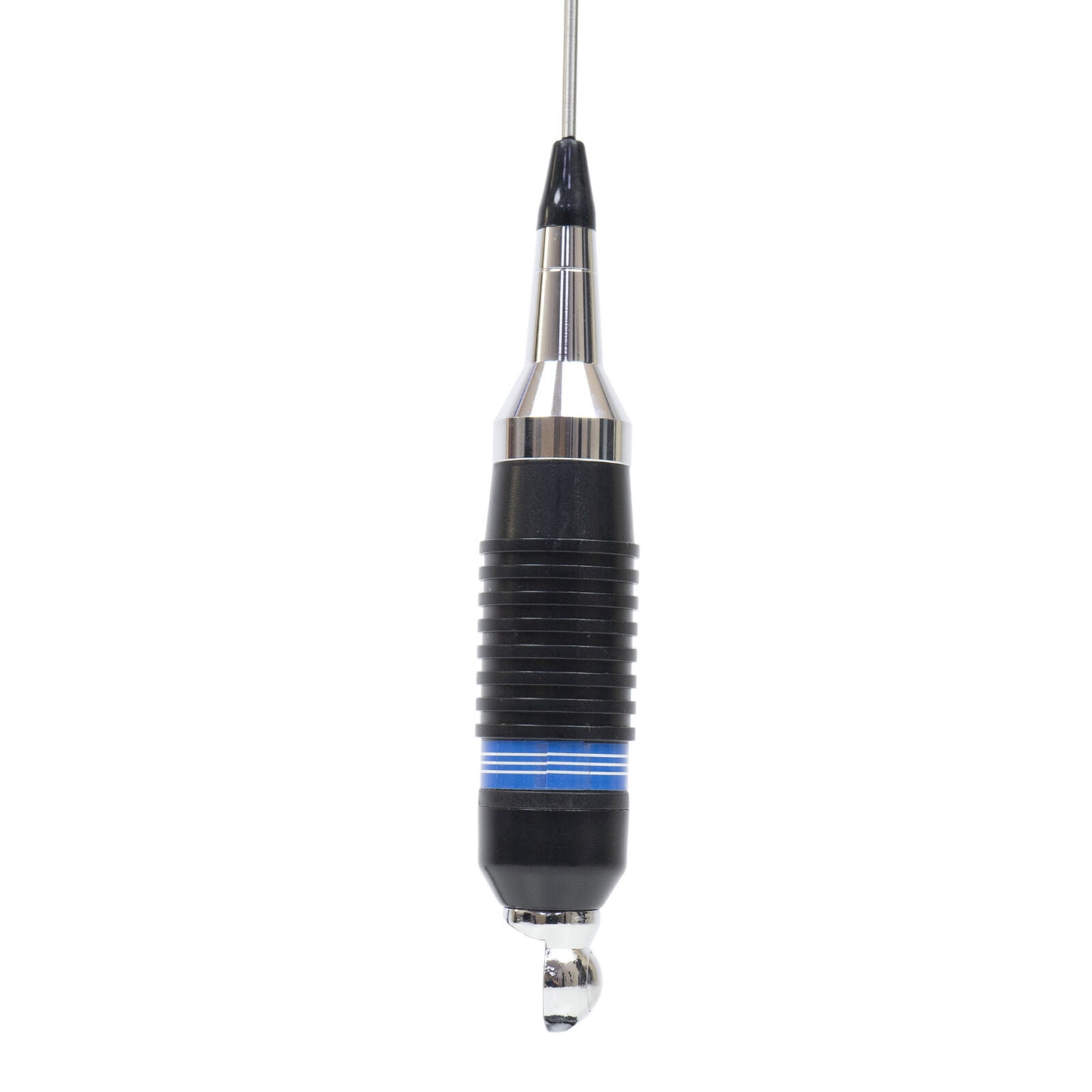

CB Mobile Antenna PNI S9

CB Mobile Antenna PNI S9

High performance CB antenna

The performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.2: 1, maximum applied power 600 W, impedance 50 Ohms, stainless steel etc.

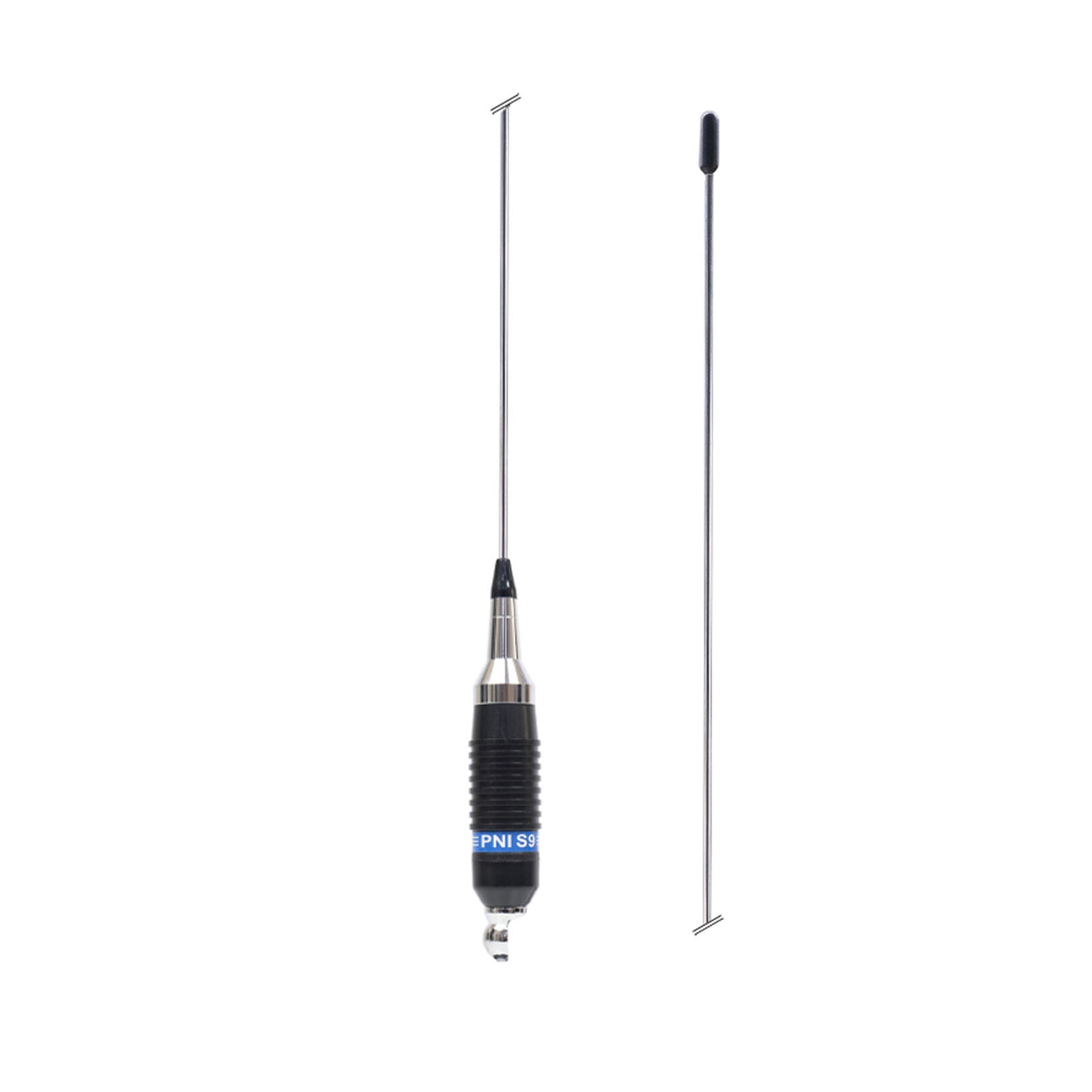

Antenna length

Antenna length is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna is, the larger the range. PNI S9 has a length of 120 cm.

Adjustable angle

This antenna can be tilted with the aid of the butterfly screw with which it is provided, to enter passages, garages or parking spaces with low height. Apart from these situations, an inclination of more than 30 degrees is not recommended as it may affect the antenna performance.

Specifications:

Frequency                26-28MHz
SWR                           <1.2:1
Power Handling       250w Continues
Impedance                50 Ohm
Polarisation               Vertical
Length                        70cm
Material                      Stainless steel
cable                           RG58  4m PL259 connector
Magnet                       145mm
