NEW CRT SS 8900 10M CB AM FM SSB CW HAM CB RADIO 10m 11m 12m UK CHEAPEST
Tax included.

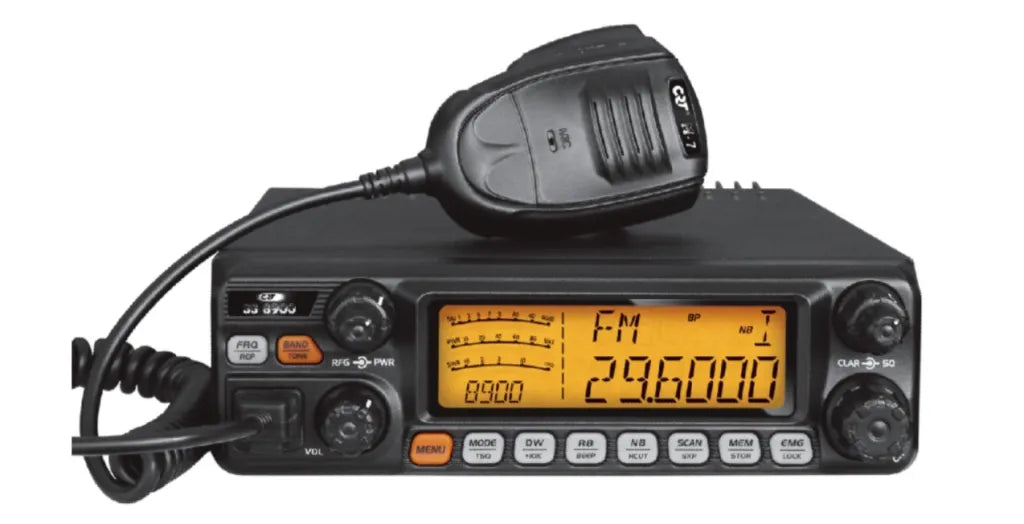

CRT SS 8900 10M CB AM FM SSB CW RADIO
VIDEO THANKS TO SIMON THE WIZARD GENT AS ALWAYS
New Radio CRT SS 8900 Short Case (10m) - YouTube
EXPORT MODE CHANNELS ON REQUEST
A BAND 40CH 25.615-26.055MHZ
B BAND 40CH 26.065-26.505MHZ
C BAND 40CH 26.515-26.955MHZ
D BAND 40CH 26.965-27.405MHZ
E BAND 40CH 27.415-27.855MHZ
F BAND 40CH 27.865-28.305MHZ
G BAND 40CH 28.315-28.755MHZ
H BAND 40CH 28.765-29.205MHZ
I BAND 40CH 29.215-29.655MHZ
J BAND 40CH 29.665-30.105MHZ
K BAND UK40 26.6012-27.9912MHZ
DATA SHEET
Norm |
AMATEUR RADIO (restriction : in emission use with amator radio certificate obligatory) |
Mode |
AM / FM / LSB / USB |
Frequency range |
28 - 29.7 mHz |
Receptor |
VHF FM 136-174 mHz (possibility of 99 memories) |
Power |
60W with modulation AM / 50W FM / 60W SSB (réglable AM/FM/SSB) |
Input voltage |
13.8V DC |
Memories |
6 |
Step of increment |
100Hz / 1kHz / 5kHz / 10kHz / 100kHz / 1mHz |
S-METER |
AGC S-METER SPEED : 2 levels available |
CLARIFIER |
Yes : clarifies the voice in SSB (range ± 500Hz/± 5kHz)) |
RELAY MOD / OFFSET / SPLIT |
Yes : allows to enter a relay with two different frequency |
SQUELCH |
Automatic (ASQ)- 9 automatic squelch levels |
ROGER BEEP |
Yes : TX beep end (off / 1-5) |
RF GAIN |
Yes : adjust sensibility on RX |
MICRO GAIN |
Yes : (via menu) adjusts the gain of increasing or decreasing the audio power (1-36levels) |
CTCSS / DCS (encoder/decoder) |
38 CTCSS / 104 DCS : sub-audio code to activate repeater like selective tone (RX setup / TX setup / RX+TX setup) |
Filters NB/HI CUT |
Yes : noise filters |
NRC filter function |
Yes : RX/TX noise reduction -adjustable 5 levels- particularly effective in SSB |
SPLIT function |
Yes : allows to transmit and receive on two different frequencies in half duplex |
DOUBLE WATCH function |
Yes |
VOX function |
Yes : this feature triggers your microphone sound (hands free) (9 sensitivity levels + VOX delay time + VOX speaker) |
TOT function |
Yes : time out timer (off/adjustable up to 600 seconds) |
CTCSS / DCS SCAN function |
Yes : code search by SCAN |
SCAN function |
Yes : automatic search of busy channels |
RESET function |
Yes: in the event of a malfunction or incorrect handling, it is possible to restore the factory settings or reset the functions |
Various functions |
Selection FM deviation 4K + Emergency Channel + (+) 10kHz function / ECHO on/off (32levels) / MONITORING + OFFSET function + SWR protection + Beep function keys + Keypad lock |
Bonus |
Clarifier frequency display - Oversized radiators to dissipate heat |
Mike |
electret type - UP/DOWN selection (plug in front pannel) Microphone type selection : electret or dynamic |
Display |
BIG LCD display + DIMMER function : 5 backlight dimmer levels available |
Level display |
BIG Displaying frequency or channel + Viewing the modulation mode + Indicator signal reception and transmission + SWR level indicator |
Options |
Programming cable + software |
Programmable by software |
Yes |
Includ |
Detachable power cable + fixing bracket + screws + microphone holder + manual in French&English |
Size |
200 (l) x 230 (L) x 60 (H) mm - ULTRA COMPACT SIZE |
Weight |
1.5 kgs |
